Ramps & Thresholds - Accessible Environments

We offer a variety of ramp and threshold systems to meet your needs - from permanent to portable. We encourage you to call us direct to discuss the options that will meet your specific needs

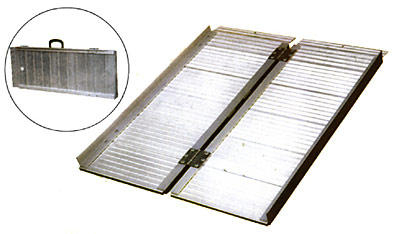

Single Fold Ramps	Description

Light weight and easy to handle and set up
Folds in the middle and has a convenient carrying handle
Ramp unfolds to a 29 inch wide platform that is ideal for wheelchairs and scooters with three or four wheels
Other features include all aluminum construction and high traction tape on the surface or extruded surface
Weight capacity is 600 pounds
Custom widths are available

PRODUCT #	LENGTH	WIDTH	FOLDED SIZE	WEIGHT	CAPACITY	PRICING
ACR3FN	3 Feet	29"	36" x 16" x 4"	14 lbs	600 lbs	$237.00
ACR4FN	4 Feet	29"	48" x 16" x 4"	18 lbs	600 lbs	$303.00
ACR5FN	5 Feet	29"	60" x 16" x 4"	22 lbs	600 lbs	$369.00
ACR6FN	6 Feet	29"	72" x 18"	37 lbs	600 lbs	$436.00

ACR3FW	3 Feet	36"	36" x 18"	20 lbs	600 lbs	$246.00
ACR4FW	4 Feet	36"	48" x 18"	26 lbs	600 lbs	$315.00
ACR5FW	5 Feet	36"	60" x 18"	32 lbs	600 lbs	$375.00
ACR6FW	6 Feet	36"	72" x 18"	41 lbs	600 lbs	$444.00

Multi Fold Ramps	Description

	Ideal for wheelchairs or scooters with 3 or 4 wheels Folds down and carries like a suitcase Unique folding design makes it easy to use, carry and store Ramp unfolds to a 30" wide platform All aluminum construction with the high traction tape on surface

PRODUCT #	LENGTH	WIDTH	FOLDED SIZE	WEIGHT	CAPACITY	PRICING
RR06	6 Feet	30"	40 5/8" x 16" x 8.5"	28 lbs	600 lbs	$475.00
RR07	7 Feet	30"	46 5/8" x 16" x 8.5"	34 lbs	600 lbs	$540.00
RR08	8 Feet	30"	54 5/8" x 16" x 9"	41 lbs	600 lbs	$700.00
RR10	10 Feet	30"	66 5/8" x 16" x 9"	52 lbs	600 lbs	$900.00

Solid Ramps	Description

	No assembly required One-piece design is ideal for wheelchairs and scooters with 3 wheels Constructed of aluminum and has a solid slip resistant surface

PRODUCT #	LENGTH	WIDTH	WEIGHT	CAPACITY	PRICING
ACR3SN	3 Feet	30"	18 lbs	600 lbs	$225.00
ACR4SN	4 Feet	30"	24 lbs	600 lbs	$290.00
ACR5SN	5 Feet	30"	30 lbs	600 lbs	$350.00
ACR6SN	6 Feet	30"	37 LBS	600 lbs	$420.00

ACR3SW	3 Feet	36"	20 lbs	600 lbs	$235.00
ACR4SW	4 Feet	36"	26 lbs	600 lbs	$299.00
ACR5SW	5 Feet	36"	32 lbs	600 lbs	$360.00
ACR6SW	6 Feet	36"	41 LBS	600 lbs	$435.00

Threshold Ramps	Description

Designed for doorways
Available in 8", 10", 12", 16" and24" lengths by 32" wide
Holes punched in top corners for easy installation
Made of aluminum
Anti-Slip surface and high traction safety tape
lightweight and durable
Load capacity 300 lbs per axle

PRODUCT #	SIZE	CAPACITY	PRICING
THR832	8" x 32"	600 lbs	$62.00
TH1032	10" x 32"	600 lbs	$62.00
TH1232	12" x 32"	600 lbs	$76.00
TH1632	16" x 32"	600 lbs	$102.00
TH1636	16" x 36"	600 lbs	$127.00
TH2432	24" x 32"	600 lbs	$160.00
TH2436	24" x 36"	600 lbs	$185.00

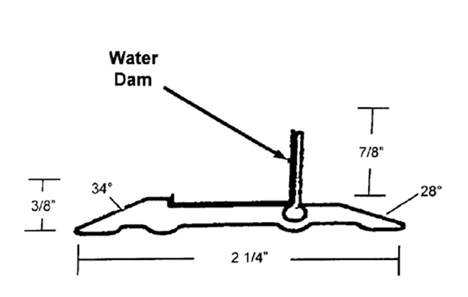

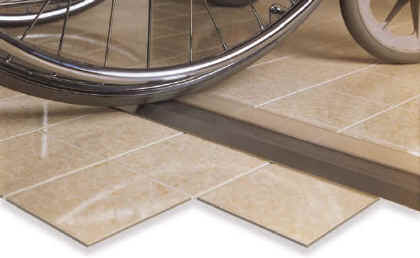

Barrier Free Water Dam Threshold	Description

Allows wheelchairs and rolling shower chairs easy access to the shower area
Threshold has a durable soft vinyl dam that is flexible for chairs to roll over easily
Dam will return upright and keep the water in the shower when the door is closed
Can be used with a shower curtain to keep the water in the bathing area and the rest of your bathroom safe and dry
Vinyl water dam can be replaced by sliding the dam along its channel
Aluminum Barrier Free Dam is available in chrome finish

EASY INSTALLATION: Apply a high quality silicone caulk to the bottom of the track and then press into desired position.

PART #	LENGTH	PRICE
PRT355	5 Feet	$85.00
PRT356	6 Feet	$95.00

REPLACEMENT VINYL STRIPPING

PART #	LENGTH	PRICE
VDAM5	5 Feet	$25.00
VDAM6	6 Feet	$28.00

Saddle Thresholds	Description

Available 1/4" high x 2 1/4" wide up to 10" wide
ADA compliant
Skid resistant surface
Fire-retardant
Available finishes include: mill finish, dark bronze anodized aluminum, gold anodized aluminum

PRODUCT #	LENGTH	WIDTH	WEIGHT	CAPACITY	PRICING

Modular Ramp Threshold System	Description

	ADA compliant system Assembly consist of interlocking components, eliminating the need to weld joints Interlocking ball-joint design allows each component to flex and conform to uneven surfaces Skid-resistant surface Aluminum

PRODUCT #	SIZE	PRICING

Rubber Ramp Threshold	Description

	ADA compliant Skid resistant and fire-retardant surface Long-lasting, weather & ozone resistant Abrasion and impact resistant "no bump" tapered lead edge Black Only

PRODUCT #	SIZE	PRICING
TRO6R42	6" x 42" x 7/8	$115.00
TR12R42	12" x 42" x 1-1/4"	$190.00
TR18R50	18" x 50" x 1-4/3"	$310.00
Tr24R60	24" x 60 x 2 3/16"	$510.00

* Longer length available for product #TR12R42 ONLY.

Sold in 1 foot increments up to 15 feet.

If you are looking for something not listed or shown, please let us know. We welcome all inquiries.
